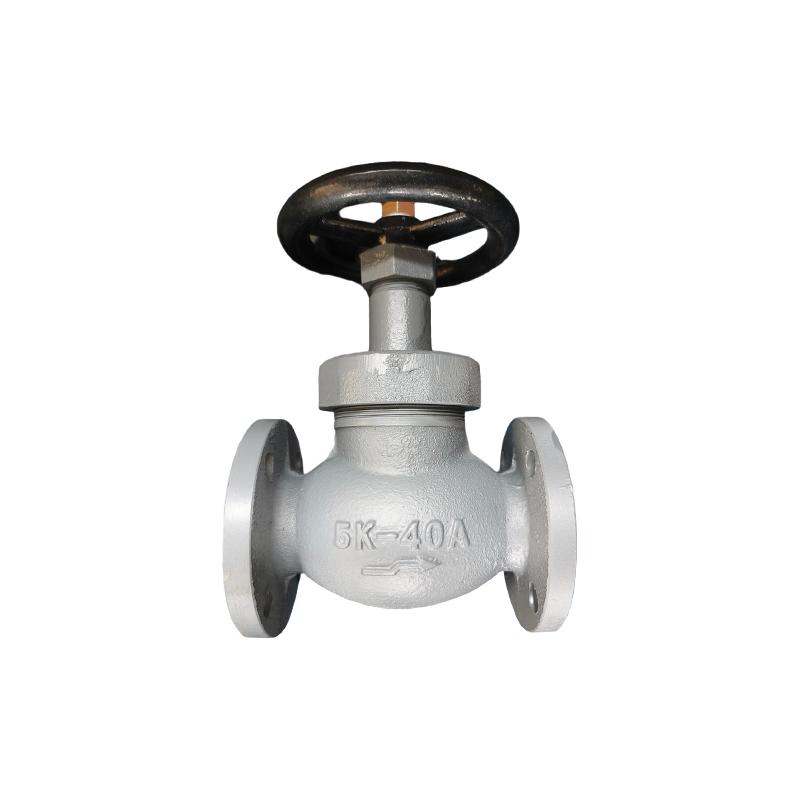

Used for pipelines carrying fresh water, air, gases, oils, and steam at temperatures below 205C on ships.
Dimension Table-JIS F7302 5K | ||||||||||||||||
Size | L | FLANGE | H | φD2 | Weight [kg] | |||||||||||
φD | φC | N | φh | t | ||||||||||||
5K15 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 | 1.98 | |||||||
5K20 | 60 | 85 | 65 | 4 | 12 | 10 | 130 | 100 | 2.73 | |||||||
5K25 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 | 3.44 | |||||||
5K32 | 80 | 115 | 90 | 4 | 15 | 12 | 150 | 125 | 4.77 | |||||||
5K40 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 | 5.99 | |||||||
5K50 | 100 | 130 | 105 | 4 | 15 | 14 | 200 | 160 | 10.10 | |||||||
5K65 | 115 | 155 | 130 | 4 | 15 | 14 | 220 | 180 | 15.60 | |||||||
We supply full range of stop valves, check valves, gate valves, hose valves, storm valves, and butterlfy valves etc. Our target is to become world class ONE-STOP supplier of marine eqiupment and marine valves
