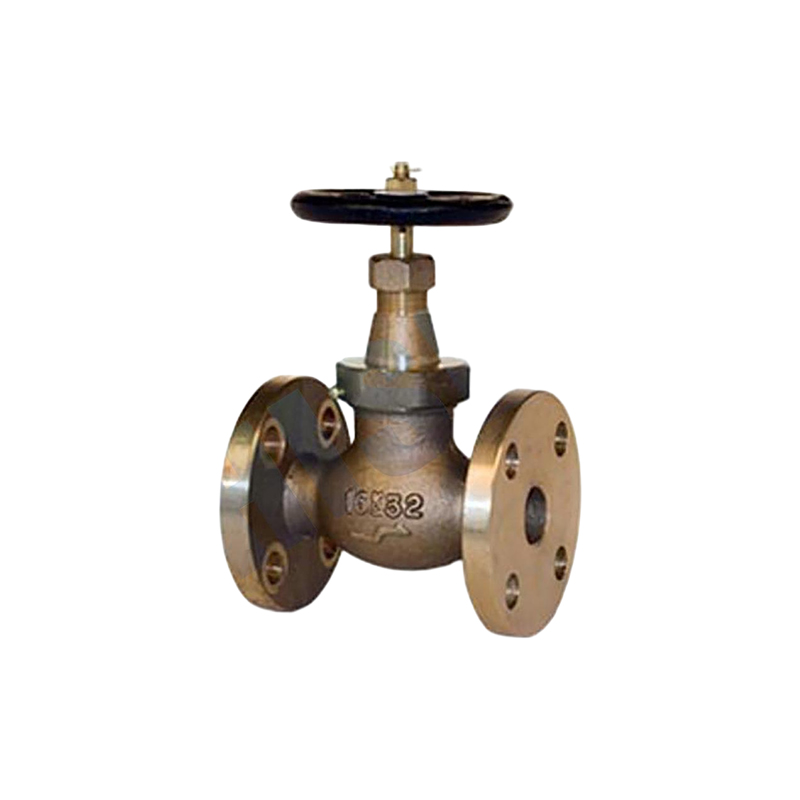

Used in marine pipelines for fresh water, air or gases, fuel oils, lubricating oils, as well as steam at 205C or below.
Dimension Table-JIS F7372 5K | |||||||||
Size | L | FLANGE | φH | φD2 | Weight [kg] | ||||
φD | φC | N | φh | t | |||||
40 | 190 | 120 | 95 | 4 | 15 | 12 | 97 | 135 | 9.06 |
50 | 190 | 130 | 105 | 4 | 15 | 16 | 97 | 135 | 9.06 |
65 | 220 | 155 | 130 | 4 | 15 | 18 | 119 | 155 | 13.9 |
80 | 250 | 180 | 145 | 4 | 19 | 18 | 129 | 185 | 19.1 |
100 | 280 | 200 | 165 | 8 | 19 | 20 | 146 | 205 | 27.1 |
125 | 330 | 235 | 200 | 8 | 19 | 20 | 171 | 235 | 39 |
150 | 380 | 265 | 230 | 8 | 19 | 22 | 198 | 265 | 53.7 |
200 | 460 | 320 | 280 | 8 | 23 | 24 | 235 | 300 | 94.4 |
250 | 550 | 385 | 345 | 12 | 23 | 26 | 290 | 390 | 150 |
300 | 700 | 430 | 390 | 12 | 23 | 28 | 290 | 470 | 288 |
We supply full range of stop valves, check valves, gate valves, hose valves, storm valves, and butterlfy valves etc. Our target is to become world class ONE-STOP supplier of marine eqiupment and marine valves
